An access point can be the solution if you experience dead zones or unstable Wi-Fi in your home. By adding one or more access points, you can expand coverage and ensure that all devices have a stable connection, regardless of where you are in the house.
In this article, you will find an overview of what you should consider when choosing an access point, the different types available, and the manufacturers worth knowing about.
The article presents a selection of access points from different manufacturers and price ranges. The goal is to provide an overview of the functions, features, and areas of use so that you can more easily find the type that best suits your home or office. The product information is based on publicly available descriptions from manufacturers and retailers and is summarised to offer an informative and comparable overview.
Factors to consider when buying an access point
When you need to choose an access point, there are several technical and practical aspects that influence how well the solution will work in your home.
1. Speed and standards
Access points support different Wi-Fi standards such as Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), and the latest Wi-Fi 6E models, which also use the 6 GHz band. The newer the standard, the higher the speed and the better the handling of many simultaneous devices.
2. Coverage and antennas
The number and type of antennas affect the range. Access points with external antennas often provide a better signal in large rooms or through walls. Consider how many square metres you want to cover and whether you need multiple devices to achieve full coverage.
3. Power supply and installation
Some access points receive power via PoE (Power over Ethernet), which makes installation easier since only one network cable is needed. Others require a separate power supply. Also check whether the device can be mounted on a wall or ceiling for optimal placement.
4. Security and management
A good access point should support modern security protocols such as WPA3 and offer the option of a guest network. If you have multiple access points, centralised management via an app or web interface can make network control easier.
5. Price and features
The price depends on performance, standard, and features. For normal home use, a single access point may be sufficient, while larger homes or offices can benefit from a system with multiple devices and advanced management.
Products in focus
Ubiquiti UniFi UAP-AC-HD-5 is a set of five wireless access points developed to provide fast and stable Wi-Fi coverage in large network environments. Each unit supports dual-band operation with 2.4 GHz and 5 GHz frequency bands, offering flexibility and high overall bandwidth.
The access point is based on the 802.11ac Wave 2 standard and can handle over 500 simultaneous clients, making it suitable for offices, educational institutions, and public areas with many users. The internal 4T4R MIMO technology contributes to efficient data transfer and a stable connection.
The devices can be centrally managed via Ubiquiti’s UniFi Controller software, which allows network monitoring, configuration, and scalability. The design is discreet and can be mounted on both walls and ceilings, making installation flexible.
The set comes with mounting brackets but without PoE adapters, as the devices support PoE+ power via network cable. The low power consumption and wide operating temperature range make them suitable for continuous operation in various environments.
- Dual-band performance: Supports both 2.4 GHz (up to 800 Mbps) and 5 GHz (up to 1.733 Mbps).
- High capacity: Can handle more than 500 simultaneous clients per unit.
- Advanced Wi-Fi 5 technology: 802.11ac Wave 2 with 4T4R MIMO for efficient data transfer.
- Centralised management: Compatible with UniFi Controller for easy configuration and management.
- Flexible mounting: Can be installed on walls or ceilings and comes with mounting brackets.
Pros and cons
- High performance and stability in environments with many users
- Supports modern Wi-Fi 5 (802.11ac Wave 2)
- Centralised management via UniFi Controller
- Flexible mounting and discreet design
- PoE+ power via network cable
- PoE adapters are not included and must be purchased separately
- Requires UniFi Controller for full functionality
- The product is discontinued and may be difficult to find
Pros and cons
Pros
- High performance and stability in environments with many users
- Supports modern Wi-Fi 5 (802.11ac Wave 2)
- Centralised management via UniFi Controller
- Flexible mounting and discreet design
- PoE+ power via network cable
Cons
- PoE adapters are not included and must be purchased separately
- Requires UniFi Controller for full functionality
- The product is discontinued and may be difficult to find
Pros
- High performance and stability in environments with many users
- Supports modern Wi-Fi 5 (802.11ac Wave 2)
- Centralised management via UniFi Controller
- Flexible mounting and discreet design
- PoE+ power via network cable
Cons
- PoE adapters are not included and must be purchased separately
- Requires UniFi Controller for full functionality
- The product is discontinued and may be difficult to find
Specifications
- Manufacturer: Ubiquiti
- Model: UAP-AC-HD-5
- EAN: 0810354026133
- Item number: 2581639
- Quantity per package: 5 (specifications refer to a single unit)
- Wireless standard: IEEE 802.11a/b/g/n/ac, 802.11ac Wave 2
- Frequency bands: 2.4 GHz and 5 GHz
- Maximum data rate: 1.733 Gbps
- Capacity: Over 500 simultaneous clients, 1–4 BSSID per radio
- Antenna: Internal, 4 antennas
- Interface: 2 x 1000Base-T (PoE+) RJ-45
- PoE support: PoE+ (802.3at)
- Power consumption: 17 W
- Dimensions: 22 × 22 × 4.81 cm
- Weight: 700 g
- Operating temperature: -10 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Compliance standards: IC, FCC, IEEE 802.1Q, 802.3af, 802.3at
Ubiquiti Rocket M365 is a wireless device developed for outdoor use, where stability and range are essential. It supports the AirMax protocol, which enables efficient data transfer in both point-to-point and point-to-multipoint configurations.
The device is powered by an Atheros MIPS 24KC processor at 550 MHz and features 64 MB of RAM and 8 MB of flash memory, ensuring stable and fast operation. It is equipped with two RP-SMA antenna ports and one 100Base-TX RJ-45 port for network connection.
Rocket M365 is designed to be mounted on a pole and built to withstand outdoor conditions. It supports Power over Ethernet (PoE), simplifying installation by combining power and data in a single cable.
With a power consumption of 6.5 watts and a 3.65 GHz frequency band, the device is suitable for professional wireless networks that require reliable connections and flexible configurations.
- Outdoor design: Robust construction for mounting in challenging environments.
- AirMax protocol: Optimised for efficient wireless communication in professional networks.
- PoE support: Simplifies installation by combining power and data in a single cable.
- Flexible mounting: Can be mounted on a pole for optimal positioning and signal strength.
- Low power consumption: Efficient operation with only 6.5 watts of consumption.
Pros and cons
- Robust construction for outdoor use
- Supports the AirMax protocol for high performance
- PoE simplifies installation
- Flexible mounting and compact design
- Suitable for both point-to-point and point-to-multipoint configurations
- Limited to the 3.65 GHz frequency band
- Requires compatible AirMax components for full functionality
- The product is discontinued and may be difficult to find
Pros and cons
Pros
- Robust construction for outdoor use
- Supports the AirMax protocol for high performance
- PoE simplifies installation
- Flexible mounting and compact design
- Suitable for both point-to-point and point-to-multipoint configurations
Cons
- Limited to the 3.65 GHz frequency band
- Requires compatible AirMax components for full functionality
- The product is discontinued and may be difficult to find
Pros
- Robust construction for outdoor use
- Supports the AirMax protocol for high performance
- PoE simplifies installation
- Flexible mounting and compact design
- Suitable for both point-to-point and point-to-multipoint configurations
Cons
- Limited to the 3.65 GHz frequency band
- Requires compatible AirMax components for full functionality
- The product is discontinued and may be difficult to find
Specifications
- Manufacturer: Ubiquiti
- Model: ROCKETM365
- Item number: 2666928
- EAN: 4250605598143
- Device type: Wireless connection (external, outdoor)
- Processor: 1 x Atheros MIPS 24KC 550 MHz
- RAM: 64 MB SDRAM
- Flash memory: 8 MB
- Data connection protocol: AirMax
- Frequency band: 3.65 GHz
- Power Over Ethernet (PoE): Supported
- Power consumption: 6.5 watts
- Interface: 2 x antenna (RP-SMA), 1 x 100Base-TX (RJ-45)
- Features: MIMO technology, QoS, pole mounting
- Dimensions (W x D x H): 16 × 8 × 3 cm
- Weight: 500 g
- Operating system: AirOS
Ubiquiti UniFi UAP-AC-SHD is an enterprise access point designed to provide a stable and fast wireless connection in demanding environments. The device supports both 2.4 GHz and 5 GHz frequency bands and can reach speeds of up to 800 Mbps and 1733 Mbps respectively.
The access point is based on Wi-Fi 5 (802.11ac Wave 2) and uses 4T4R MIMO technology to optimise signal strength and coverage. It can handle more than 500 simultaneous clients and supports features such as VLAN, QoS, and Wi-Fi Multimedia (WMM).
The device has integrated antennas and comes with mounting brackets, making it suitable for both wall and ceiling mounting. It is powered via PoE+ and has two Gigabit Ethernet ports, offering flexibility in installation.
With features such as Wireless Intrusion Prevention System (WIPS), airView, and Airtime Fairness, the UAP-AC-SHD is designed to deliver both high performance and advanced network security in professional environments.
- Dual-band performance: Supports both 2.4 GHz and 5 GHz up to 1733 Mbps.
- Wi-Fi 5 (802.11ac Wave 2): Offers high capacity and efficient data management.
- Advanced security: Includes WIPS and supports various encryption methods.
- Flexible installation: Can be wall or ceiling mounted and powered via PoE+.
- High capacity: Supports over 500 simultaneous clients.
Pros and cons
- High wireless performance with dual-band technology
- Supports many simultaneous users
- Advanced security features such as WIPS and VLAN
- PoE+ power for easy installation
- Compatible with UniFi Controller for centralised management
- Requires UniFi Controller software for full functionality
- Not suitable for small home networks, as it is intended for enterprise use
Pros and cons
Pros
- High wireless performance with dual-band technology
- Supports many simultaneous users
- Advanced security features such as WIPS and VLAN
- PoE+ power for easy installation
- Compatible with UniFi Controller for centralised management
Cons
- Requires UniFi Controller software for full functionality
- Not suitable for small home networks, as it is intended for enterprise use
Pros
- High wireless performance with dual-band technology
- Supports many simultaneous users
- Advanced security features such as WIPS and VLAN
- PoE+ power for easy installation
- Compatible with UniFi Controller for centralised management
Cons
- Requires UniFi Controller software for full functionality
- Not suitable for small home networks, as it is intended for enterprise use
Specifications
- Manufacturer: Ubiquiti
- Model: UAP-AC-SHD
- Item number: 2626195
- EAN: 4250605500108
- Device type: Wireless connection (external)
- Wi-Fi standard: IEEE 802.11a/b/g/n/ac & ac Wave 2
- Frequency bands: 2.4 GHz and 5 GHz
- Maximum data rate: 1733 Mbps
- Capacity: Over 500 simultaneous clients, 1–4 BSSID per radio
- Antenna: Internal, 4 antennas
- Interface: 2 x 1000Base-T (PoE+) RJ-45
- Power supply: PoE+ (consumption 17 W)
- Dimensions: 22 × 22 × 4.81 cm
- Weight: 700 g
- Operating temperature: -10 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Compliance standards: IC, FCC, IEEE 802.1Q, 802.3af, 802.3at
Ubiquiti PrismStation PS-5AC is an outdoor access point that uses AirMax ac technology to provide a fast and stable wireless connection on the 5 GHz band. The device is built to withstand harsh environments and is therefore suitable for installations where reliability and signal strength are important.
The interchangeable horn antenna allows the signal to be focused in a specific direction, reducing interference from other sources and improving noise immunity. This makes it particularly suitable for areas with many wireless signals.
The device is powered via Power over Ethernet (PoE), simplifying installation as both power and data are transmitted through the same cable. It supports data transmission speeds of up to 500 Mbps and is equipped with a MIPS 74KC processor and 128 MB of DDR2 RAM.
With its modular design, AirOS 8 operating system, and features such as QoS, TPC, and airPrism technology, the PrismStation PS-5AC offers network administrators flexibility and control over wireless connections in professional environments.
- AirMax ac technology: Provides high data transmission speed and efficient use of the 5 GHz band.
- Outdoor design: Robust construction that withstands temperatures from -40 °C to 70 °C.
- Modular antenna: Interchangeable horn antenna with 14 dBi gain for focused signal direction.
- PoE support: Power and data through a single cable for easy installation.
- Advanced network features: Supports QoS, TPC, airPrism, and TDMA for optimised performance.
Pros and cons
- High performance and stable connection on the 5 GHz band
- Robust construction for outdoor use
- Flexible antenna solution with interchangeable horn
- PoE power supply for easy installation
- Advanced network features for professional use
- Requires a PoE injector or compatible switch
- The directional antenna requires precise mounting for optimal coverage
Pros and cons
Pros
- High performance and stable connection on the 5 GHz band
- Robust construction for outdoor use
- Flexible antenna solution with interchangeable horn
- PoE power supply for easy installation
- Advanced network features for professional use
Cons
- Requires a PoE injector or compatible switch
- The directional antenna requires precise mounting for optimal coverage
Pros
- High performance and stable connection on the 5 GHz band
- Robust construction for outdoor use
- Flexible antenna solution with interchangeable horn
- PoE power supply for easy installation
- Advanced network features for professional use
Cons
- Requires a PoE injector or compatible switch
- The directional antenna requires precise mounting for optimal coverage
Specifications
- Manufacturer: Ubiquiti
- Model: PS-5AC
- EAN: 817882022668
- Item number: 3083836
- Device type: Wireless connection (external, outdoor)
- Processor: 1 x MIPS 74KC
- RAM: 128 MB DDR2 SDRAM
- Data connection protocol: AirMax ac
- Frequency band: 5 GHz
- Data transmission speed: Up to 500 Mbps
- Antenna: 1 pc., 14 dBi gain
- Interface: 1 x 1000Base-T (PoE) - RJ-45
- Power supply: PoE (Power over Ethernet), consumption 10 W
- Dimensions (W x D x H): 17.4 × 18.4 × 17.4 cm
- Weight: 1.07 kg
- Operating temperature: -40 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Operating system: AirOS 8
- Compliance standards: IC, FCC
Ubiquiti UniFi AC Mesh Professional UAP-AC-M-PRO is a business-grade access point developed for outdoor use. The device supports dual-band 802.11a/b/g/n/ac and provides up to 450 Mbps on the 2.4 GHz band and up to 1300 Mbps on the 5 GHz band.
The weather-resistant enclosure makes it suitable for wall or pole mounting, and the integrated omnidirectional antennas ensure wide coverage in open environments. The device can be powered via 802.3af PoE or with the included Gigabit PoE adapter.
The access point is centrally managed via the UniFi Controller software or via UniFi Cloud Key, allowing unified management of multiple devices, traffic monitoring, and guest network configuration.
UAP-AC-M-PRO comes with mounting brackets, PoE adapter, and necessary accessories, so installation can be carried out quickly and safely.
- Dual-band performance: Supports both 2.4 GHz and 5 GHz with a total speed of up to 1750 Mbps.
- Outdoor design: Robust construction that withstands wind and weather.
- 3x3 MIMO technology: Offers high capacity and stable connection for multiple users.
- Centralised management: Controlled via UniFi Controller or UniFi Cloud Key.
- Flexible power supply: Can be powered via 802.3af PoE or with the included PoE adapter.
Pros and cons
- High wireless speed and range
- Suitable for outdoor installations
- Easy integration into the UniFi network
- Supports both wall and pole mounting
- Comes with PoE adapter and mounting accessories
- Requires UniFi Controller for configuration and operation
- Not suitable for use outside the UniFi ecosystem
Pros and cons
Pros
- High wireless speed and range
- Suitable for outdoor installations
- Easy integration into the UniFi network
- Supports both wall and pole mounting
- Comes with PoE adapter and mounting accessories
Cons
- Requires UniFi Controller for configuration and operation
- Not suitable for use outside the UniFi ecosystem
Pros
- High wireless speed and range
- Suitable for outdoor installations
- Easy integration into the UniFi network
- Supports both wall and pole mounting
- Comes with PoE adapter and mounting accessories
Cons
- Requires UniFi Controller for configuration and operation
- Not suitable for use outside the UniFi ecosystem
Specifications
- Manufacturer: Ubiquiti
- Model: UAP-AC-M-PRO
- Item number: 2574978
- EAN: 0810354024764
- Device type: Wireless connection (Wi-Fi 5)
- Form factor: Outdoor, for outdoor use
- Data connection protocols: IEEE 802.11a/b/g/n/ac
- Frequency bands: 2.4 GHz and 5 GHz
- Maximum data speed: 450 Mbps (2.4 GHz) + 1300 Mbps (5 GHz)
- Maximum range: 183 metres
- Antennas: 3 internal, 8 dBi gain
- Interface: 2 x 1000Base-T (PoE+) RJ-45
- Power supply: PoE+ (DC 44–57 V), consumption 9 W
- Dimensions (W x D x H): 18.12 × 6.02 × 34.32 cm
- Weight: 633 g
- Operating temperature: -40 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Supported operating systems: Linux, macOS, Windows 7/8/10
- Included accessories: PoE injector, mounting brackets, pole mount, screws
Product descriptions
Ubiquiti UniFi UAP-AC-HD-5 is a set of five wireless access points developed to provide fast and stable Wi-Fi coverage in large network environments. Each unit supports dual-band operation with 2.4 GHz and 5 GHz frequency bands, offering flexibility and high overall bandwidth.
The access point is based on the 802.11ac Wave 2 standard and can handle over 500 simultaneous clients, making it suitable for offices, educational institutions, and public areas with many users. The internal 4T4R MIMO technology contributes to efficient data transfer and a stable connection.
The devices can be centrally managed via Ubiquiti’s UniFi Controller software, which allows network monitoring, configuration, and scalability. The design is discreet and can be mounted on both walls and ceilings, making installation flexible.
The set comes with mounting brackets but without PoE adapters, as the devices support PoE+ power via network cable. The low power consumption and wide operating temperature range make them suitable for continuous operation in various environments.
- Dual-band performance: Supports both 2.4 GHz (up to 800 Mbps) and 5 GHz (up to 1.733 Mbps).
- High capacity: Can handle more than 500 simultaneous clients per unit.
- Advanced Wi-Fi 5 technology: 802.11ac Wave 2 with 4T4R MIMO for efficient data transfer.
- Centralised management: Compatible with UniFi Controller for easy configuration and management.
- Flexible mounting: Can be installed on walls or ceilings and comes with mounting brackets.
Pros and cons
- High performance and stability in environments with many users
- Supports modern Wi-Fi 5 (802.11ac Wave 2)
- Centralised management via UniFi Controller
- Flexible mounting and discreet design
- PoE+ power via network cable
- PoE adapters are not included and must be purchased separately
- Requires UniFi Controller for full functionality
- The product is discontinued and may be difficult to find
Pros and cons
Pros
- High performance and stability in environments with many users
- Supports modern Wi-Fi 5 (802.11ac Wave 2)
- Centralised management via UniFi Controller
- Flexible mounting and discreet design
- PoE+ power via network cable
Cons
- PoE adapters are not included and must be purchased separately
- Requires UniFi Controller for full functionality
- The product is discontinued and may be difficult to find
Pros
- High performance and stability in environments with many users
- Supports modern Wi-Fi 5 (802.11ac Wave 2)
- Centralised management via UniFi Controller
- Flexible mounting and discreet design
- PoE+ power via network cable
Cons
- PoE adapters are not included and must be purchased separately
- Requires UniFi Controller for full functionality
- The product is discontinued and may be difficult to find
Specifications
- Manufacturer: Ubiquiti
- Model: UAP-AC-HD-5
- EAN: 0810354026133
- Item number: 2581639
- Quantity per package: 5 (specifications refer to a single unit)
- Wireless standard: IEEE 802.11a/b/g/n/ac, 802.11ac Wave 2
- Frequency bands: 2.4 GHz and 5 GHz
- Maximum data rate: 1.733 Gbps
- Capacity: Over 500 simultaneous clients, 1–4 BSSID per radio
- Antenna: Internal, 4 antennas
- Interface: 2 x 1000Base-T (PoE+) RJ-45
- PoE support: PoE+ (802.3at)
- Power consumption: 17 W
- Dimensions: 22 × 22 × 4.81 cm
- Weight: 700 g
- Operating temperature: -10 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Compliance standards: IC, FCC, IEEE 802.1Q, 802.3af, 802.3at
Ubiquiti Rocket M365 is a wireless device developed for outdoor use, where stability and range are essential. It supports the AirMax protocol, which enables efficient data transfer in both point-to-point and point-to-multipoint configurations.
The device is powered by an Atheros MIPS 24KC processor at 550 MHz and features 64 MB of RAM and 8 MB of flash memory, ensuring stable and fast operation. It is equipped with two RP-SMA antenna ports and one 100Base-TX RJ-45 port for network connection.
Rocket M365 is designed to be mounted on a pole and built to withstand outdoor conditions. It supports Power over Ethernet (PoE), simplifying installation by combining power and data in a single cable.
With a power consumption of 6.5 watts and a 3.65 GHz frequency band, the device is suitable for professional wireless networks that require reliable connections and flexible configurations.
- Outdoor design: Robust construction for mounting in challenging environments.
- AirMax protocol: Optimised for efficient wireless communication in professional networks.
- PoE support: Simplifies installation by combining power and data in a single cable.
- Flexible mounting: Can be mounted on a pole for optimal positioning and signal strength.
- Low power consumption: Efficient operation with only 6.5 watts of consumption.
Pros and cons
- Robust construction for outdoor use
- Supports the AirMax protocol for high performance
- PoE simplifies installation
- Flexible mounting and compact design
- Suitable for both point-to-point and point-to-multipoint configurations
- Limited to the 3.65 GHz frequency band
- Requires compatible AirMax components for full functionality
- The product is discontinued and may be difficult to find
Pros and cons
Pros
- Robust construction for outdoor use
- Supports the AirMax protocol for high performance
- PoE simplifies installation
- Flexible mounting and compact design
- Suitable for both point-to-point and point-to-multipoint configurations
Cons
- Limited to the 3.65 GHz frequency band
- Requires compatible AirMax components for full functionality
- The product is discontinued and may be difficult to find
Pros
- Robust construction for outdoor use
- Supports the AirMax protocol for high performance
- PoE simplifies installation
- Flexible mounting and compact design
- Suitable for both point-to-point and point-to-multipoint configurations
Cons
- Limited to the 3.65 GHz frequency band
- Requires compatible AirMax components for full functionality
- The product is discontinued and may be difficult to find
Specifications
- Manufacturer: Ubiquiti
- Model: ROCKETM365
- Item number: 2666928
- EAN: 4250605598143
- Device type: Wireless connection (external, outdoor)
- Processor: 1 x Atheros MIPS 24KC 550 MHz
- RAM: 64 MB SDRAM
- Flash memory: 8 MB
- Data connection protocol: AirMax
- Frequency band: 3.65 GHz
- Power Over Ethernet (PoE): Supported
- Power consumption: 6.5 watts
- Interface: 2 x antenna (RP-SMA), 1 x 100Base-TX (RJ-45)
- Features: MIMO technology, QoS, pole mounting
- Dimensions (W x D x H): 16 × 8 × 3 cm
- Weight: 500 g
- Operating system: AirOS
Ubiquiti UniFi UAP-AC-SHD is an enterprise access point designed to provide a stable and fast wireless connection in demanding environments. The device supports both 2.4 GHz and 5 GHz frequency bands and can reach speeds of up to 800 Mbps and 1733 Mbps respectively.
The access point is based on Wi-Fi 5 (802.11ac Wave 2) and uses 4T4R MIMO technology to optimise signal strength and coverage. It can handle more than 500 simultaneous clients and supports features such as VLAN, QoS, and Wi-Fi Multimedia (WMM).
The device has integrated antennas and comes with mounting brackets, making it suitable for both wall and ceiling mounting. It is powered via PoE+ and has two Gigabit Ethernet ports, offering flexibility in installation.
With features such as Wireless Intrusion Prevention System (WIPS), airView, and Airtime Fairness, the UAP-AC-SHD is designed to deliver both high performance and advanced network security in professional environments.
- Dual-band performance: Supports both 2.4 GHz and 5 GHz up to 1733 Mbps.
- Wi-Fi 5 (802.11ac Wave 2): Offers high capacity and efficient data management.
- Advanced security: Includes WIPS and supports various encryption methods.
- Flexible installation: Can be wall or ceiling mounted and powered via PoE+.
- High capacity: Supports over 500 simultaneous clients.
Pros and cons
- High wireless performance with dual-band technology
- Supports many simultaneous users
- Advanced security features such as WIPS and VLAN
- PoE+ power for easy installation
- Compatible with UniFi Controller for centralised management
- Requires UniFi Controller software for full functionality
- Not suitable for small home networks, as it is intended for enterprise use
Pros and cons
Pros
- High wireless performance with dual-band technology
- Supports many simultaneous users
- Advanced security features such as WIPS and VLAN
- PoE+ power for easy installation
- Compatible with UniFi Controller for centralised management
Cons
- Requires UniFi Controller software for full functionality
- Not suitable for small home networks, as it is intended for enterprise use
Pros
- High wireless performance with dual-band technology
- Supports many simultaneous users
- Advanced security features such as WIPS and VLAN
- PoE+ power for easy installation
- Compatible with UniFi Controller for centralised management
Cons
- Requires UniFi Controller software for full functionality
- Not suitable for small home networks, as it is intended for enterprise use
Specifications
- Manufacturer: Ubiquiti
- Model: UAP-AC-SHD
- Item number: 2626195
- EAN: 4250605500108
- Device type: Wireless connection (external)
- Wi-Fi standard: IEEE 802.11a/b/g/n/ac & ac Wave 2
- Frequency bands: 2.4 GHz and 5 GHz
- Maximum data rate: 1733 Mbps
- Capacity: Over 500 simultaneous clients, 1–4 BSSID per radio
- Antenna: Internal, 4 antennas
- Interface: 2 x 1000Base-T (PoE+) RJ-45
- Power supply: PoE+ (consumption 17 W)
- Dimensions: 22 × 22 × 4.81 cm
- Weight: 700 g
- Operating temperature: -10 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Compliance standards: IC, FCC, IEEE 802.1Q, 802.3af, 802.3at
Ubiquiti PrismStation PS-5AC is an outdoor access point that uses AirMax ac technology to provide a fast and stable wireless connection on the 5 GHz band. The device is built to withstand harsh environments and is therefore suitable for installations where reliability and signal strength are important.
The interchangeable horn antenna allows the signal to be focused in a specific direction, reducing interference from other sources and improving noise immunity. This makes it particularly suitable for areas with many wireless signals.
The device is powered via Power over Ethernet (PoE), simplifying installation as both power and data are transmitted through the same cable. It supports data transmission speeds of up to 500 Mbps and is equipped with a MIPS 74KC processor and 128 MB of DDR2 RAM.
With its modular design, AirOS 8 operating system, and features such as QoS, TPC, and airPrism technology, the PrismStation PS-5AC offers network administrators flexibility and control over wireless connections in professional environments.
- AirMax ac technology: Provides high data transmission speed and efficient use of the 5 GHz band.
- Outdoor design: Robust construction that withstands temperatures from -40 °C to 70 °C.
- Modular antenna: Interchangeable horn antenna with 14 dBi gain for focused signal direction.
- PoE support: Power and data through a single cable for easy installation.
- Advanced network features: Supports QoS, TPC, airPrism, and TDMA for optimised performance.
Pros and cons
- High performance and stable connection on the 5 GHz band
- Robust construction for outdoor use
- Flexible antenna solution with interchangeable horn
- PoE power supply for easy installation
- Advanced network features for professional use
- Requires a PoE injector or compatible switch
- The directional antenna requires precise mounting for optimal coverage
Pros and cons
Pros
- High performance and stable connection on the 5 GHz band
- Robust construction for outdoor use
- Flexible antenna solution with interchangeable horn
- PoE power supply for easy installation
- Advanced network features for professional use
Cons
- Requires a PoE injector or compatible switch
- The directional antenna requires precise mounting for optimal coverage
Pros
- High performance and stable connection on the 5 GHz band
- Robust construction for outdoor use
- Flexible antenna solution with interchangeable horn
- PoE power supply for easy installation
- Advanced network features for professional use
Cons
- Requires a PoE injector or compatible switch
- The directional antenna requires precise mounting for optimal coverage
Specifications
- Manufacturer: Ubiquiti
- Model: PS-5AC
- EAN: 817882022668
- Item number: 3083836
- Device type: Wireless connection (external, outdoor)
- Processor: 1 x MIPS 74KC
- RAM: 128 MB DDR2 SDRAM
- Data connection protocol: AirMax ac
- Frequency band: 5 GHz
- Data transmission speed: Up to 500 Mbps
- Antenna: 1 pc., 14 dBi gain
- Interface: 1 x 1000Base-T (PoE) - RJ-45
- Power supply: PoE (Power over Ethernet), consumption 10 W
- Dimensions (W x D x H): 17.4 × 18.4 × 17.4 cm
- Weight: 1.07 kg
- Operating temperature: -40 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Operating system: AirOS 8
- Compliance standards: IC, FCC
Ubiquiti UniFi AC Mesh Professional UAP-AC-M-PRO is a business-grade access point developed for outdoor use. The device supports dual-band 802.11a/b/g/n/ac and provides up to 450 Mbps on the 2.4 GHz band and up to 1300 Mbps on the 5 GHz band.
The weather-resistant enclosure makes it suitable for wall or pole mounting, and the integrated omnidirectional antennas ensure wide coverage in open environments. The device can be powered via 802.3af PoE or with the included Gigabit PoE adapter.
The access point is centrally managed via the UniFi Controller software or via UniFi Cloud Key, allowing unified management of multiple devices, traffic monitoring, and guest network configuration.
UAP-AC-M-PRO comes with mounting brackets, PoE adapter, and necessary accessories, so installation can be carried out quickly and safely.
- Dual-band performance: Supports both 2.4 GHz and 5 GHz with a total speed of up to 1750 Mbps.
- Outdoor design: Robust construction that withstands wind and weather.
- 3x3 MIMO technology: Offers high capacity and stable connection for multiple users.
- Centralised management: Controlled via UniFi Controller or UniFi Cloud Key.
- Flexible power supply: Can be powered via 802.3af PoE or with the included PoE adapter.
Pros and cons
- High wireless speed and range
- Suitable for outdoor installations
- Easy integration into the UniFi network
- Supports both wall and pole mounting
- Comes with PoE adapter and mounting accessories
- Requires UniFi Controller for configuration and operation
- Not suitable for use outside the UniFi ecosystem
Pros and cons
Pros
- High wireless speed and range
- Suitable for outdoor installations
- Easy integration into the UniFi network
- Supports both wall and pole mounting
- Comes with PoE adapter and mounting accessories
Cons
- Requires UniFi Controller for configuration and operation
- Not suitable for use outside the UniFi ecosystem
Pros
- High wireless speed and range
- Suitable for outdoor installations
- Easy integration into the UniFi network
- Supports both wall and pole mounting
- Comes with PoE adapter and mounting accessories
Cons
- Requires UniFi Controller for configuration and operation
- Not suitable for use outside the UniFi ecosystem
Specifications
- Manufacturer: Ubiquiti
- Model: UAP-AC-M-PRO
- Item number: 2574978
- EAN: 0810354024764
- Device type: Wireless connection (Wi-Fi 5)
- Form factor: Outdoor, for outdoor use
- Data connection protocols: IEEE 802.11a/b/g/n/ac
- Frequency bands: 2.4 GHz and 5 GHz
- Maximum data speed: 450 Mbps (2.4 GHz) + 1300 Mbps (5 GHz)
- Maximum range: 183 metres
- Antennas: 3 internal, 8 dBi gain
- Interface: 2 x 1000Base-T (PoE+) RJ-45
- Power supply: PoE+ (DC 44–57 V), consumption 9 W
- Dimensions (W x D x H): 18.12 × 6.02 × 34.32 cm
- Weight: 633 g
- Operating temperature: -40 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Supported operating systems: Linux, macOS, Windows 7/8/10
- Included accessories: PoE injector, mounting brackets, pole mount, screws
Different types of access points
There are different types of access points, each suitable for different needs and environments.
1. Standard access points
These models connect directly to the router via cable and extend Wi-Fi coverage in a specific area. They are suitable for homes where the signal simply needs to be boosted in certain rooms.
2. Mesh access points
A mesh system consists of multiple devices that work together to create a unified and seamless network. This solution is ideal for large homes or buildings with many walls, where the signal would otherwise be weakened.
3. Outdoor access points
Outdoor models are designed to withstand the elements and can provide wireless coverage in the garden, on the terrace, or in the courtyard. They usually have higher transmission power and a robust construction.
4. Professional access points
These are often used in businesses, schools, or large buildings where many users need to access the network simultaneously. They offer advanced management options, high security, and the possibility of centralised control.
Different brands of access points
The access point market includes many manufacturers, each with its own strengths and areas of specialisation.
Ubiquiti
Ubiquiti is known for its UniFi products, which combine high performance with intuitive management. The series is aimed at both private and professional users who want flexible network management.

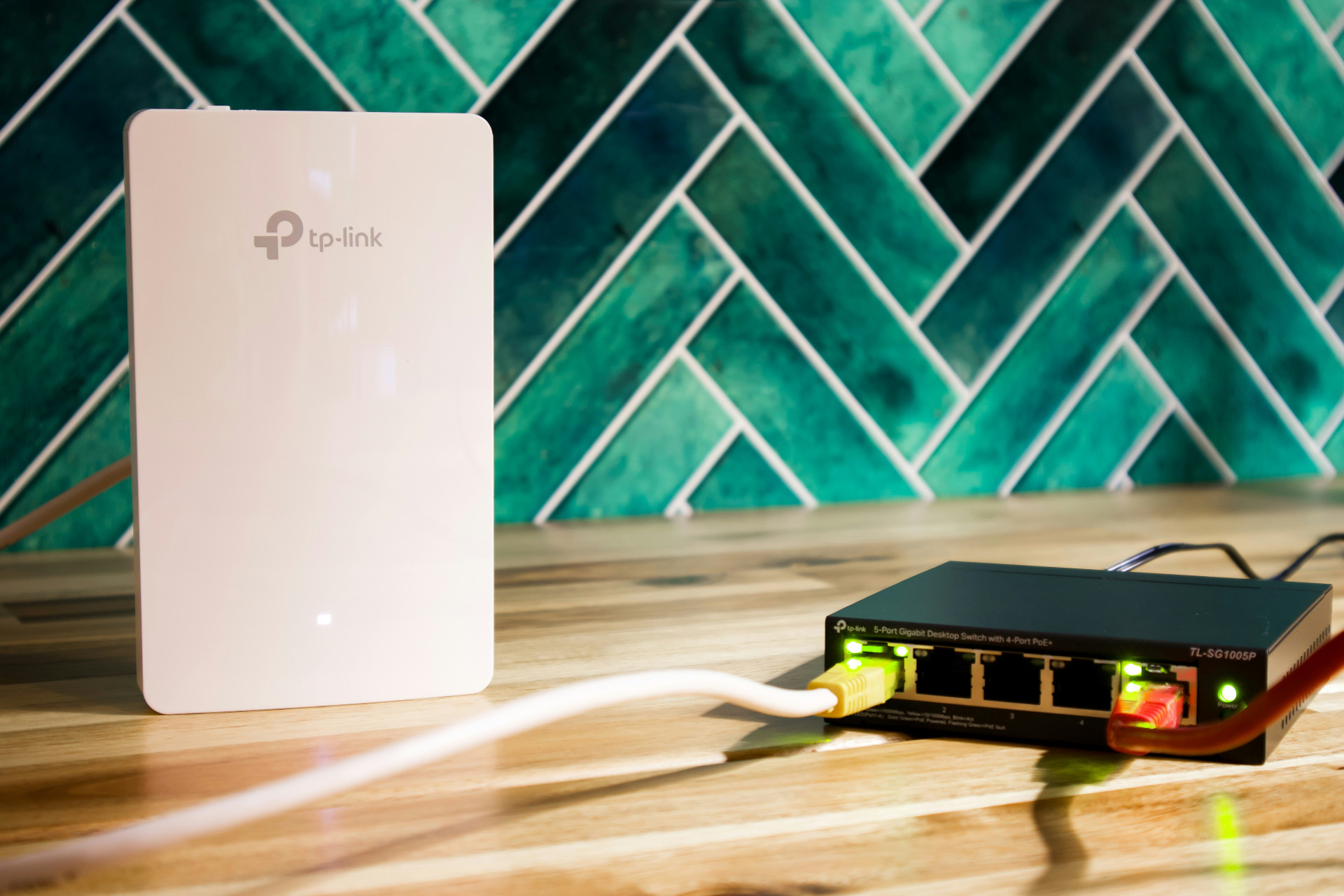

TP-Link
TP-Link offers a wide range of access points for home and business use. The brand is popular for its combination of affordability, stability, and ease of setup.
Netgear
Netgear produces both simple and advanced access points, including the Orbi series, known for its powerful mesh technology and high speed. The products are intended for users who want reliable coverage throughout the home.
ASUS
ASUS offers access points and mesh solutions with a particular focus on high performance and optimisation for gaming. They often offer advanced features such as QoS and robust security settings.
Cisco
Cisco is one of the most renowned manufacturers of networking equipment and offers professional access points with a particular focus on stability, security, and centralised management – often used in business environments.
Frequently asked questions
What is the difference between an access point and a Wi-Fi repeater?
An access point creates a new wireless network via a wired connection to the router, while a Wi-Fi repeater simply repeats the existing signal. Access points usually offer greater stability and speed.
How many access points do I need?
It depends on the size and layout of the house. A single access point can cover a small flat, while larger homes or offices often require multiple devices placed strategically for full coverage.
Can I use access points with my current router?
Yes, most access points can be integrated with existing routers. You just need to make sure that the router has a free LAN port and that the access point is placed where the signal can be best utilised.
How should I best position the access points?
Place the access points centrally in the area you want to cover and avoid hiding them behind furniture or in cupboards. If you use multiple devices, they should be positioned so that the signals slightly overlap to ensure seamless coverage.
Is it difficult to install an access point?
Most modern access points are easy to install via an app or web interface. Many models support automatic configuration, so you can connect quickly without technical experience.
Læs også:
